The TDP158 device is an AC-Coupled HDMI signal to
transition-minimized differential signal (TMDS)
Redriver supporting digital video interface (DVI) 1.0
and high-definition multimedia interface (HDMI) 1.4b
and 2.0b output signals. The TDP158 supports four
TMDS channels and Digital Display Control (DDC)
interfaces. The TDP158 supports signaling rates up
to 6 Gbps to allow for the highest resolutions of
4k2k60p 24 bits per pixel and up to WUXGA 16-bit
color depth or 1080p with higher refresh rates. The
TDP158 can be configured to support the HDMI2.0
standard.
The TDP158 supports dual power supply rails of 1.1
V on VDD and 3.3 V on VCC for power reduction.
Several methods of power management are
implemented to reduce overall power consumption.
TDP158 supports fixed receiver EQ gain using I
2C or
pin strap to compensate for different lengths input
cable or board traces.
Compatible with
Models
Microsoft Xbox One X (2017)
Features
Product type
Console parts
Quality
Quality
Smartphones are technological marvels that rely on a complex array of high-quality components to meet the demands of today’s users. Understanding the different qualities is essential for consumers and professionals in the mobile world to have knowledge about them. Below is a list of some common terms related to smartphone screen quality.
Service pack
Brand-new original parts packaged for authorized repair services. Quality and compatibility identical to factory-installed components.
Original
Genuine parts made by the device’s original manufacturer. Perfect fit, factory-grade performance, and reliability.
Pulled
Original parts carefully removed from working devices. Fully tested to ensure excellent functionality and value.
Refurbished
Pre-used parts professionally restored to like-new condition. Tested for quality, performance, and reliability.
OEM
Original Equipment Manufacturer parts produced by the same makers as the brand but without branding. Factory-level quality at a better price.
OLED-SOFT
Flexible OLED screens offering premium color and smooth touch response. Ideal for a closer-to-original display experience.
OLED-HARD
Rigid OLED screens built for durability and vibrant visuals. A cost-effective alternative with excellent performance.
IN-CELL
Touch and display layers are integrated for a thinner, faster screen. Offers a sleek design and responsive touch experience.
COMPATIBLE
High-quality parts made by third-party manufacturers. Designed to match the performance and fit of the original.
OEM
Original Equipment Manufacturer parts produced by the same makers as the brand but without branding. Factory-level quality at a better price.
Technical specifications
Brand
Microsoft
Brand series
Microsoft / Xbox
Colors
Black
Compatible with
Microsoft Xbox One X (2017)
Console type
Xbox One X
Device type
Console
Model
Xbox / Xbox One X (2017)
Product group
Spare parts
Quality
OEM
Warranty
180 days
What s in the box

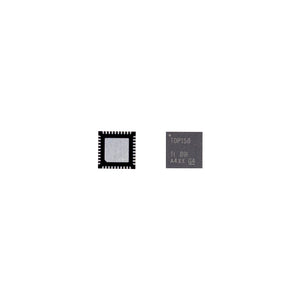

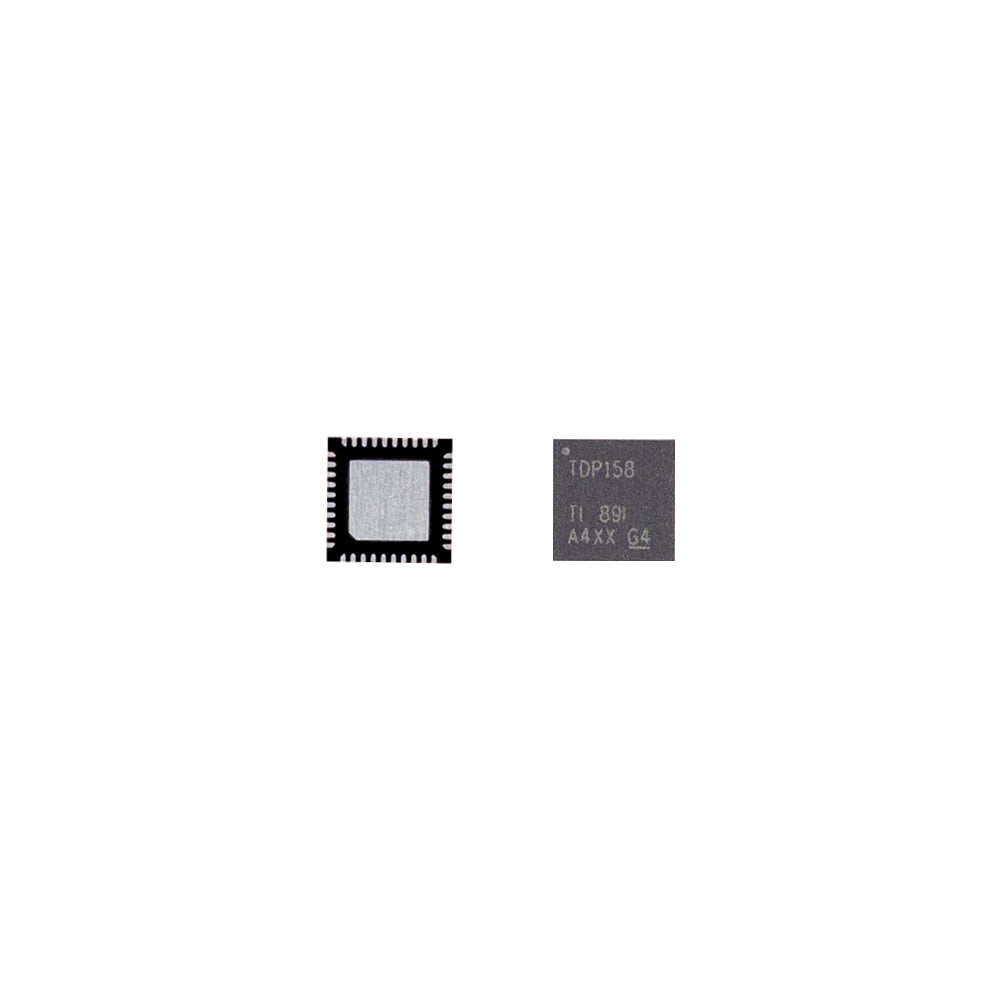

1x For Xbox One X Chipset TDP158 TDP158RSBR TDP158RSBT QFN-40
