It's always been difficult to probe and measure those tiny pins on an iPhone connector. And if you need to probe a connector while it's connected... well, you might as well say goodbye to the rest of your afternoon.

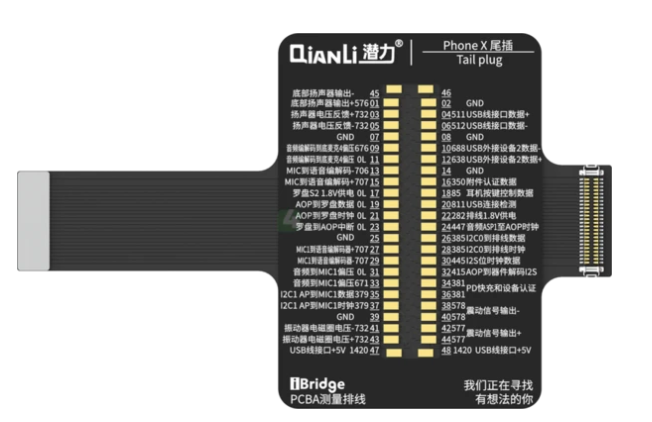

This ends today. Enter the iBridge, a modern solution to fumbling around with giant multimeter probes and silently praying we don't accidentally slip and short something out on the logic board. The iBridge offers a breakout board for the LCD, dock/charging port, and front/rear camera connectors! It connects to the logic board and whatever component you would like to test, and allows you to use the device while simultaneously probing the connector at the same time.
Additionally, each pin on the iBridge is labeled with the pin function and diode mode measurement, so you can can concentrate on what you're measuring instead of where you are on the schematic. For all the iPhone board repair technicians out there, this is the day we have all been waiting for.
Available for iPhone 6, 6+, 6s, 6s+, 7, and 7+, every model have 4 type test cable as: rear camera, front facing camera,dock connector and touch screen cable.
The phone board layout is precise and compact, and most PIN pins have no epitaxial line of testing. For example, the board does not connect to the LCD screen. When the boot board can not detect the screen, there will not be relevant voltage output and technicians can not detect and test the voltage value of the relevant circuit.
In this link you can find all the iBridge available https://4phones.eu/search?type=product&options%5Bprefix%5D=last&q=ibridge
